Description

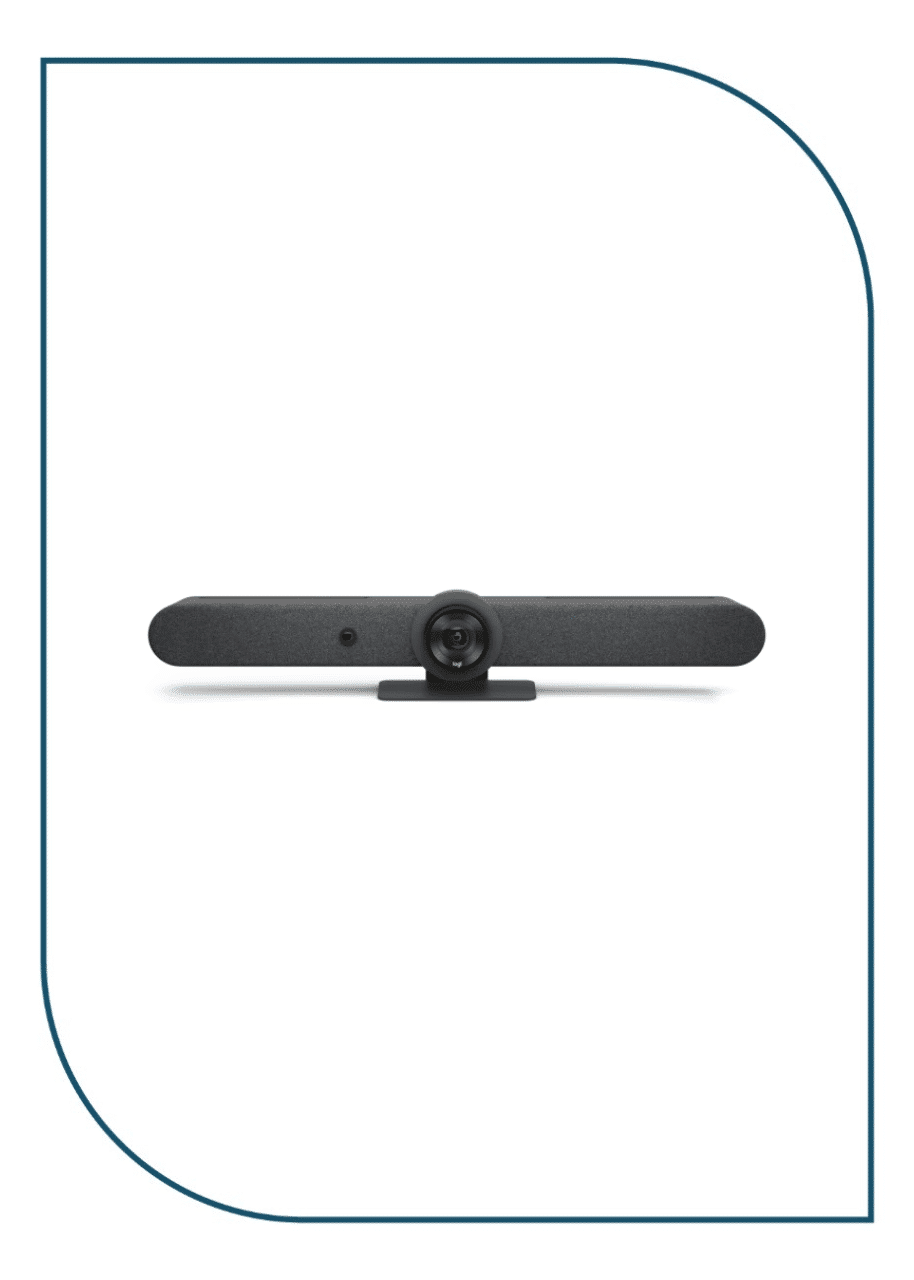

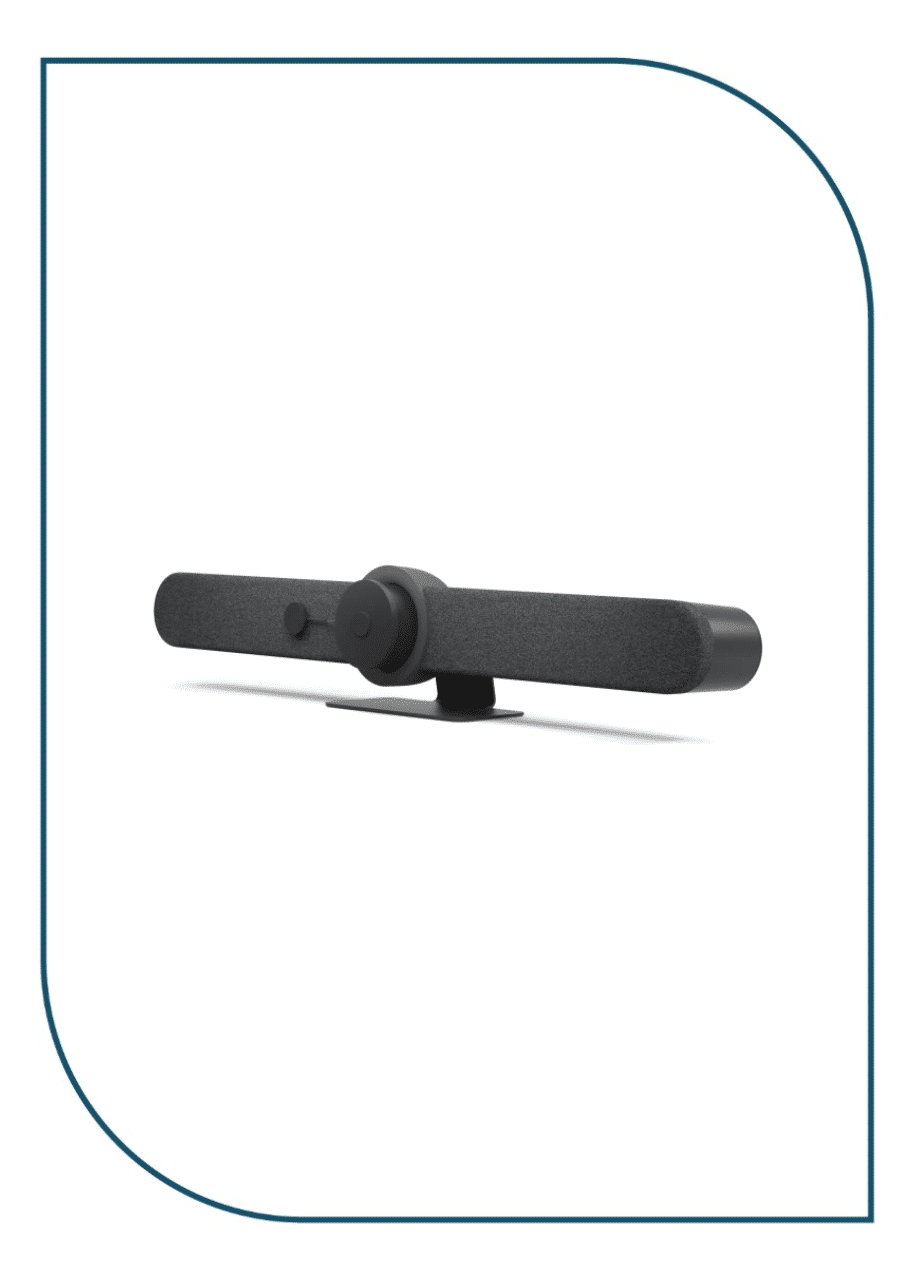

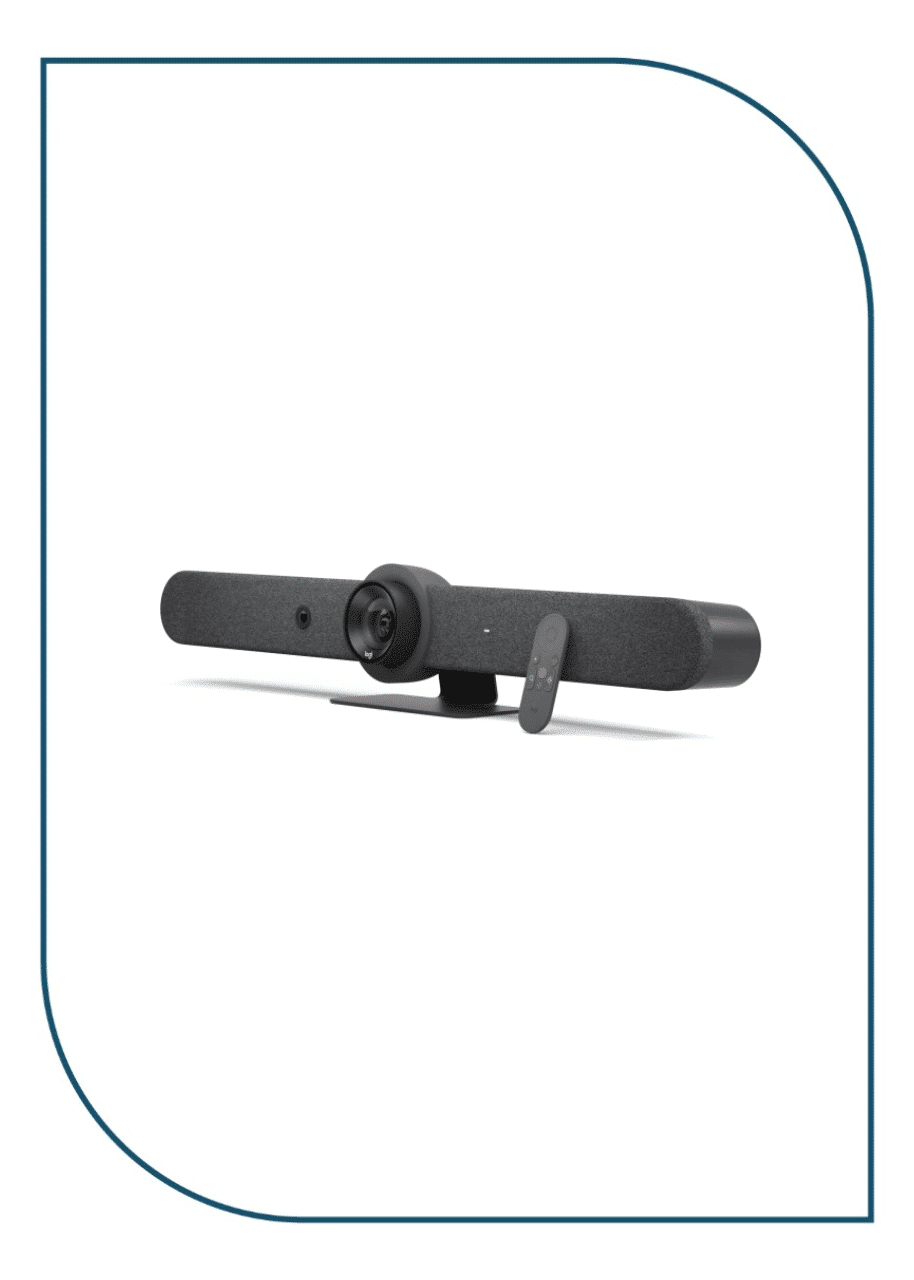

Logitech Rally Bar (960-001312)
Key Features :
-
All-in-one video bar with camera, speakers, and microphones
-
Ultra-HD 4K camera with intelligent framing
-
Designed for medium to large meeting rooms
-
Powerful built-in speakers and beamforming microphones
-
Works with Zoom, Microsoft Teams, and Google Meet
-
Easy setup with USB or appliance mode
-
Premium graphite design and build quality
Technical Specifications
General Specifications
- Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform
- Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
- Device Management: Logitech Sync
- Displays Supported: 2
- Display Resolution: Up to 1080p
- Network Protocol Support: IPv4, IPv6
- Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
Camera
- Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
- Pan: Motorized ±25°
- Tilt: Motorized ±15°
- Zoom: 15X HD zoom (5X optical and 3X digital)
- Diagonal Field of View: 90°
- Horizontal Field of View: 82.1°
- Vertical Field of View: 52.2°
- Total Room Coverage (field of view + pan and tilt): 132.1° Horizontal x 82.2° Vertical
Speakers
- Drivers: 2x 70 mm
- Sensitivity: 92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
- Rated Power: 8W
- THD: 1kHz < 2% at 1W
- Speaker Sampling Rate: 48 kHz
- Impedance: 4 Ohms
Microphones
- Frequency Response: 90Hz – 16kHz
- Sensitivity: >-36dBFS +/-1 dB @ 1Pa
- Microphone data rate output: 48KHz
- Pickup Range: Up to 7 m
- Beamforming Elements: 6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams
- Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
- Noise suppression: AI based de-noising algorithm
- Add-on Mics: Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms
RightSense™ Technologies
- RightLight: Renders natural skin tones for each participant
- RightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room
- RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
- Grid View: Detects and frames all meeting participants in order to create equitable hybrid meeting experiences. To learn more, visit logitech.com/prosupport/gridview
