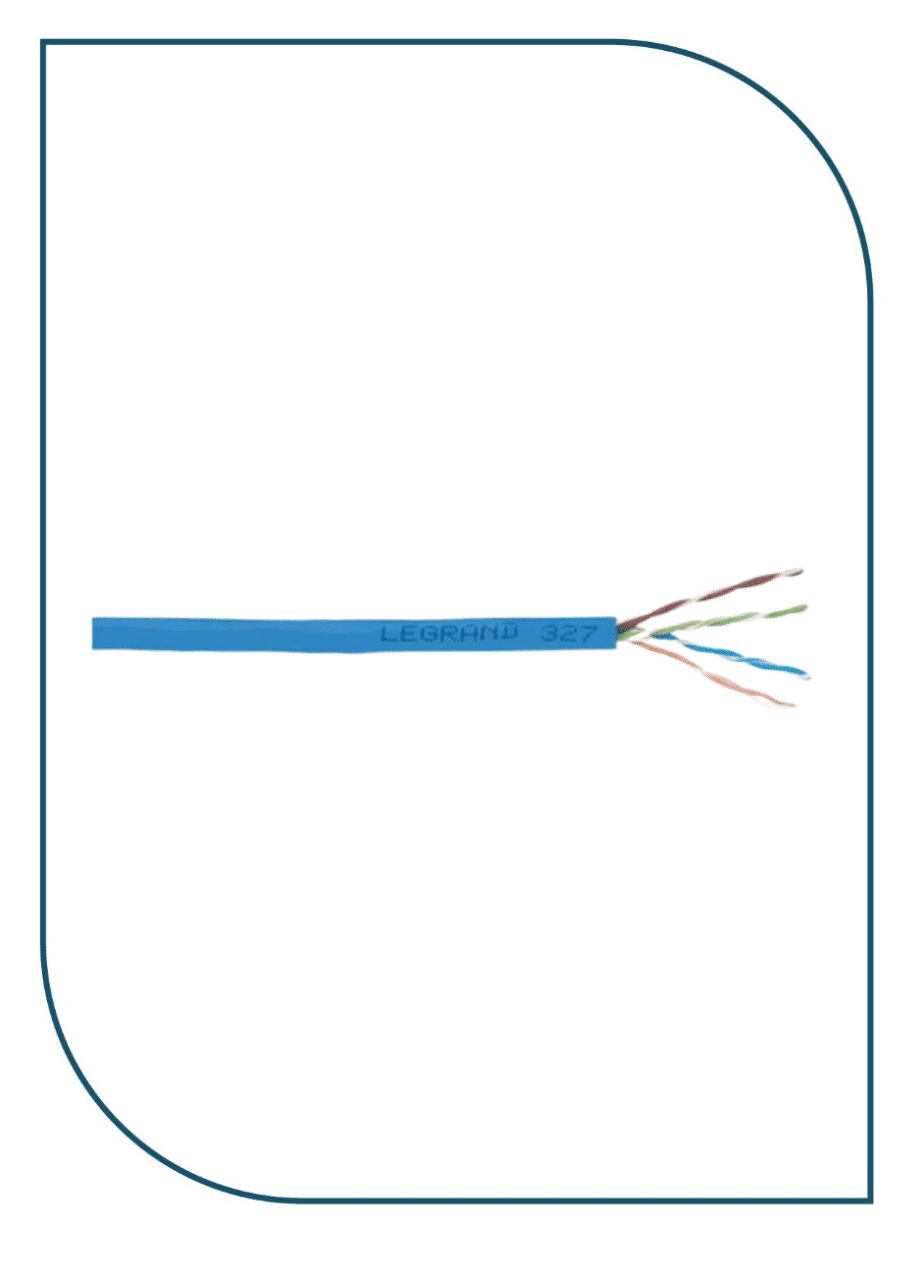

Legrand Cable category 6 U/UTP 4 pairs LSZH Euroclass Dca 305 meters blue (32754)

This category 6 U/UTP 4 pairs (32754) cable supports data transmission in a structured cabling system.

Description

32754

This category 6 U/UTP 4 pairs cable supports data transmission in a structured cabling system.

Caractéristiques techniques

Category 6 U/UTP : for up to 1 Gigabit per second data rate, unshielded cable
4 pairs cable
Low Smoke Zero Halogen materials that emit limited smoke and no halogen when exposed to high sources of heat.
Euroclass Dca offers adequate reaction to fire with a certification of compliance from an independent laboratory.
Power over Ethernet : 802.3 bt PoE++ applications compatible according to installation standards ISO/IEC 14763-2 (final draft) and EN 50174-2 : 2018

Recommendations / Restrictions

Cable type	U/UTP
Duplex	No
Conductor material	Copper
Conductor surface	Bare
Diameter conductor	0.56 mm
Nominal cross section conductor	0.25 mm²
AWG size	23
Conductor category	Class 1 = solid
Number of cores	8
Number of stranding elements	4
Stranding element	Pairs
Material core insulation	Other
Specification core insulation	Polyethylene (PE)
Core identification according to HD 308 S2	No
Core identification	Colour
Screen over stranding element	None
Stranding	Bundle
Screen over stranding	None
Longitudinal water blocking cable	No
Radial water blocking cable	Yes
Suitable for underground installation	No
Approved type of underground installation	Other
Protective sheath	None
Material outer sheath	Other
Specification material outer sheath	Polyethylene (PE)
Colour outer sheath	Blue
Armouring/reinforcement	None
Cable geometry	Round
Flame retardant according to IEC 60332-1-2	Yes
Flame retardant according to IEC 60332-3-21 (Cat A F/R)	No
Flame retardant according to IEC 60332-3-22 (Cat A)	No
Flame retardant according to IEC 60332-3-23 (Cat B)	No
Flame retardant according to IEC 60332-3-24 (Cat C)	No
