Description

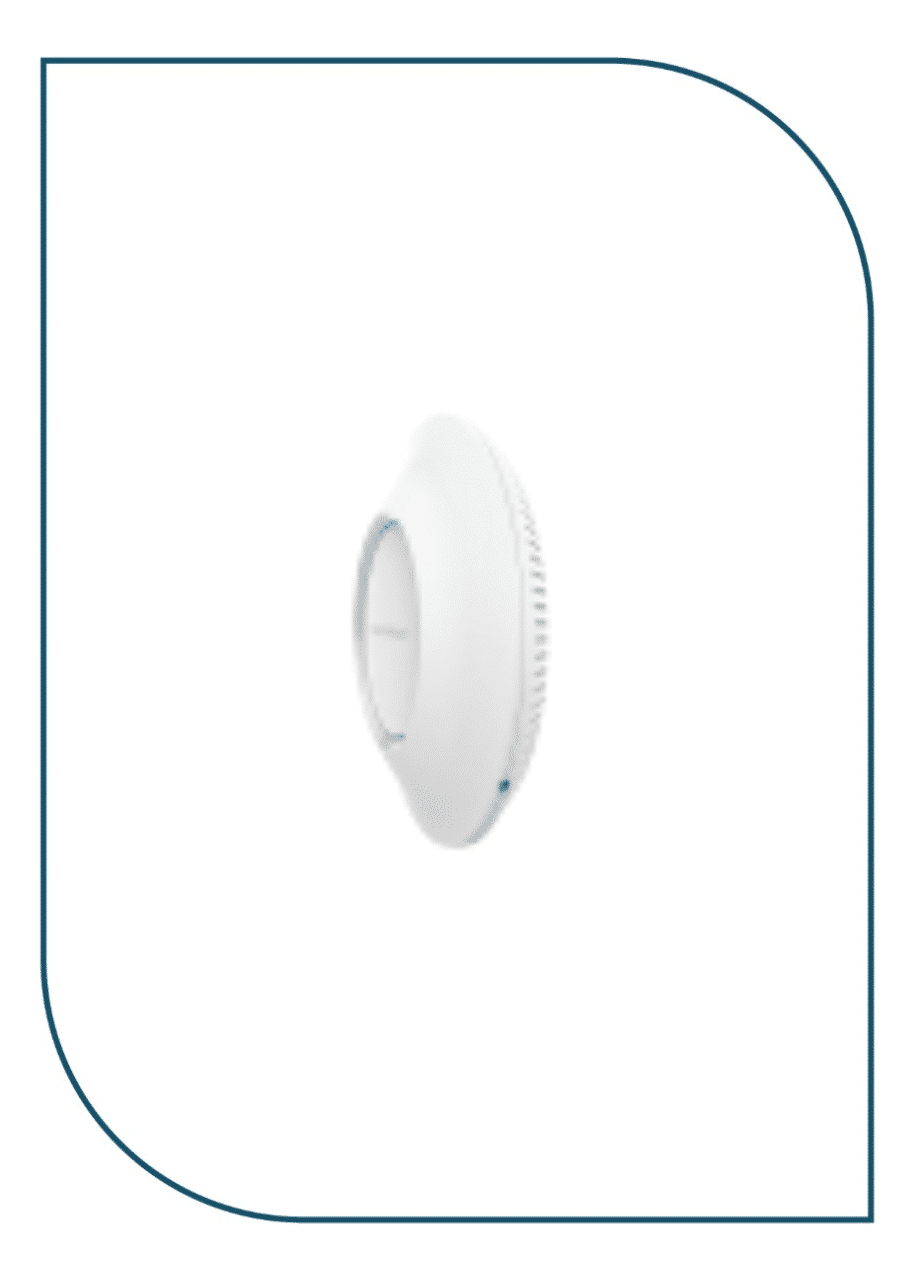

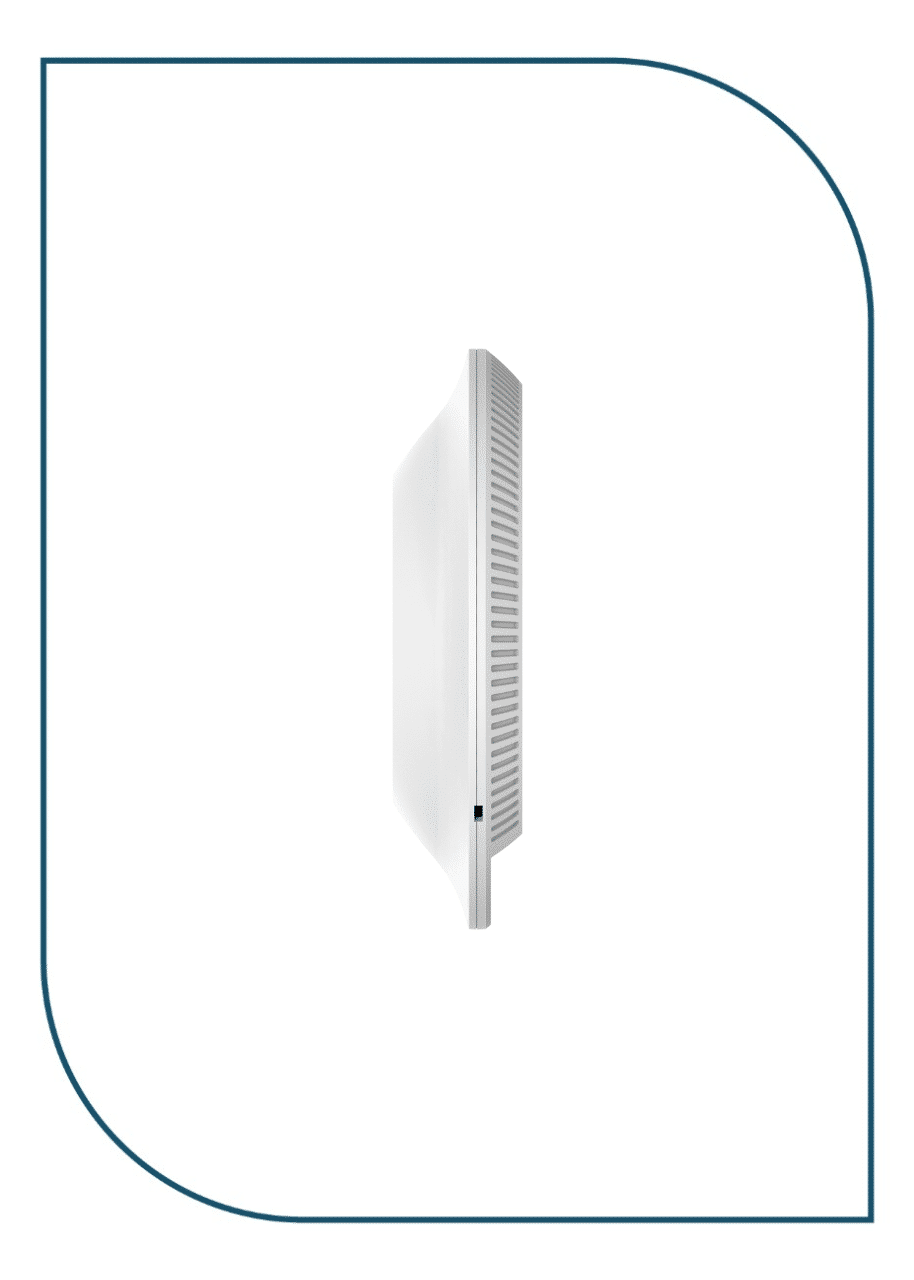

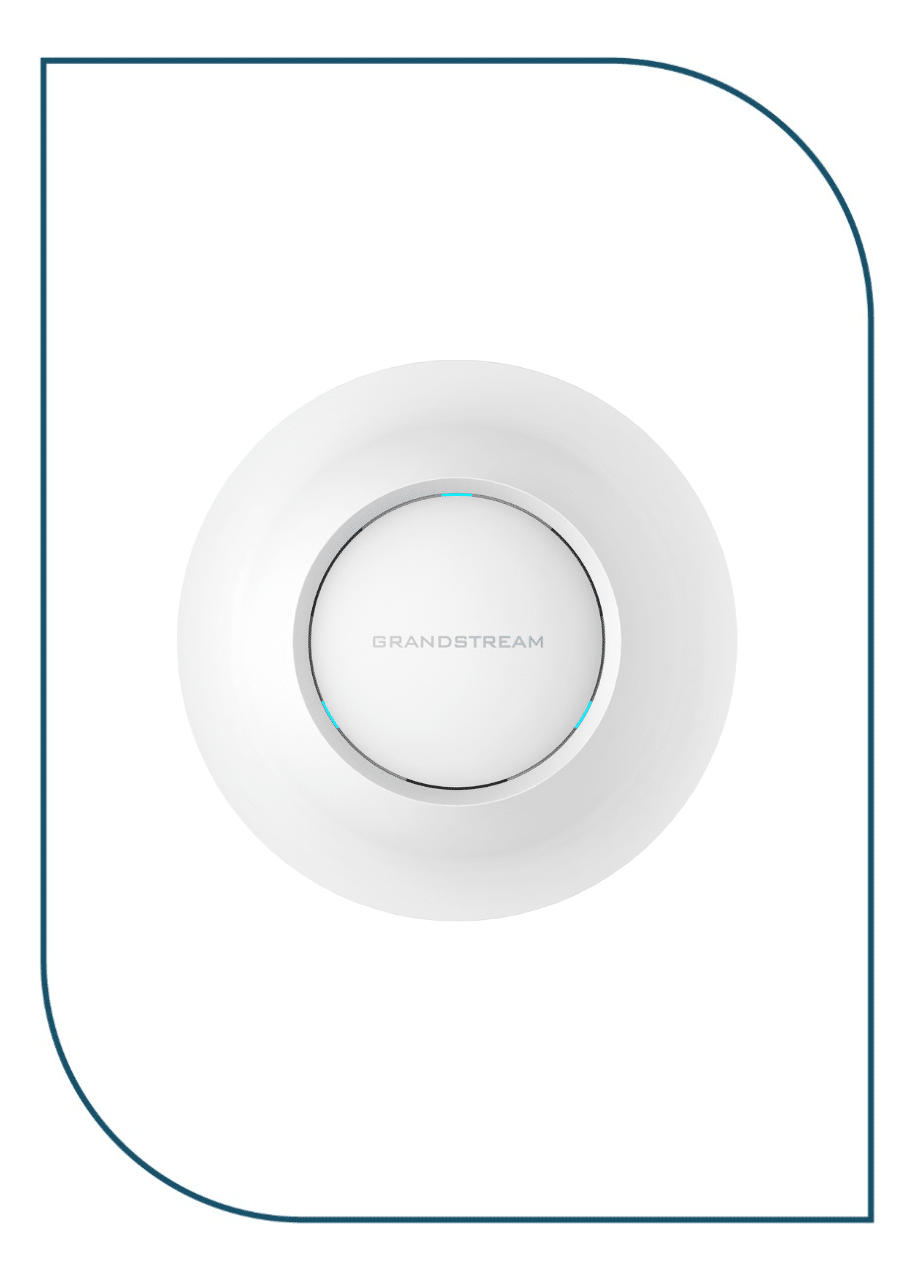

GWN7630
Key features :
- 2.33 Gbps wireless throughput and 2 Gigabit wireline ports
- Dual-band 4×4:4 MU-MIMO technology
- Self power adaptation upon auto detection of PoE or PoE+
- Supports 200+ concurrent Wi-Fi client devices
- Up to 175-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/ random default password per device
- Embedded controller can manage up to 50 local GWN series APs; GDMS Networking offers unlimited AP management
Specs :
| Item | Details |
|---|---|
| Client Devices | 200+ devices |
| 2.4GHz Throughput | 600 Mbps (4×4:4 MIMO) |
| 5GHz Throughput | 1733 Mbps (4×4:4 MU-MIMO) |
| 6GHz Throughput | N/A |
| Range | Up to 175 meters |
| Network Interfaces | 2 × autosensing 10/100/1000 Base-T Ethernet ports |
| PoE Support | PoE / PoE+ (IEEE 802.3af / 802.3at) |
| Maximum Power Consumption | 16.5W |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac (Wave-2) |
| SSIDs | 32 SSIDs total (16 per radio – 2.4GHz & 5GHz) |
| Antennas | 4 internal dual-band antennas |
| Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, WPA3, secure boot, digital signatures |
| Dimensions | 205.3 × 205.3 × 45.9 mm |
| Mounting Options | Indoor wall mount or ceiling mount |
