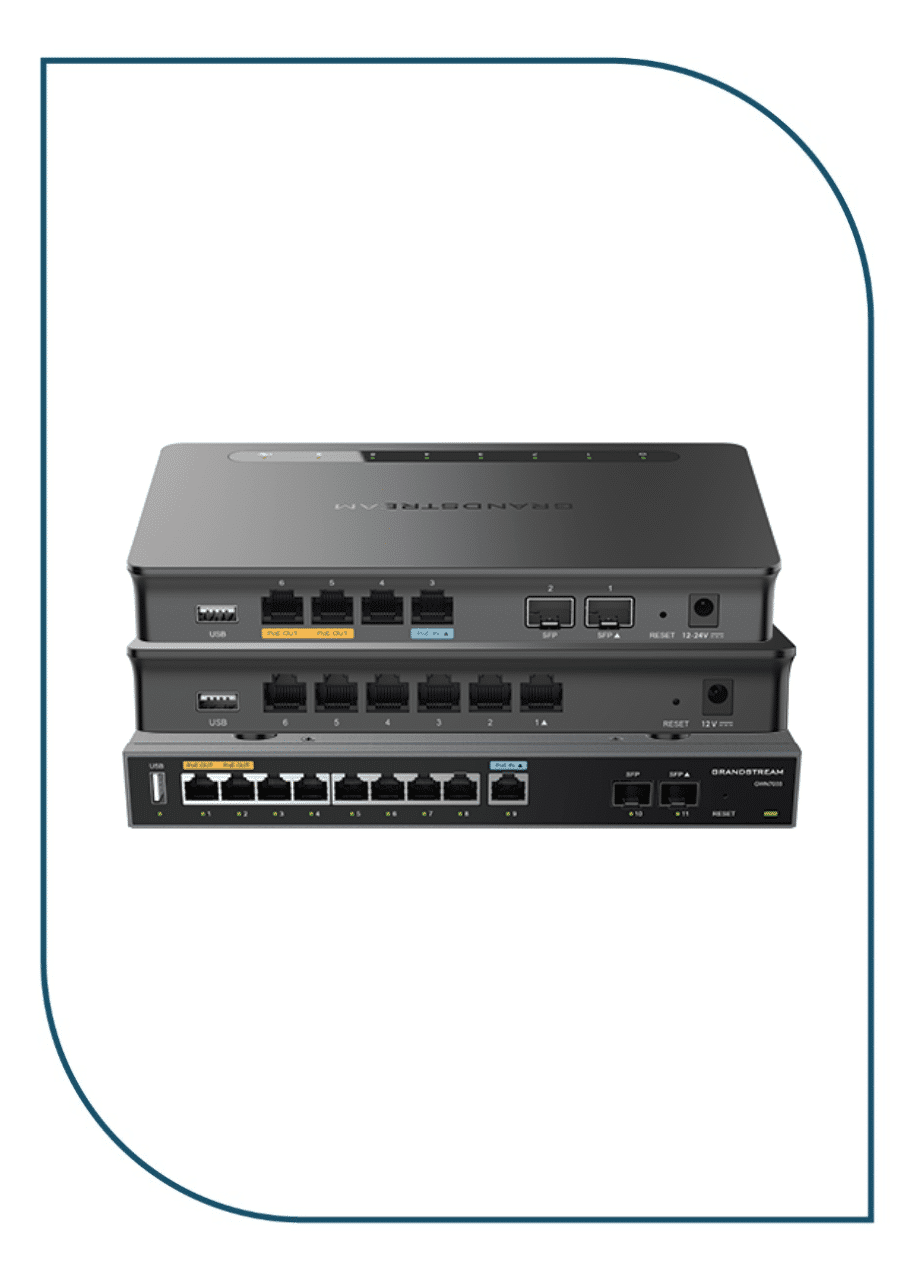

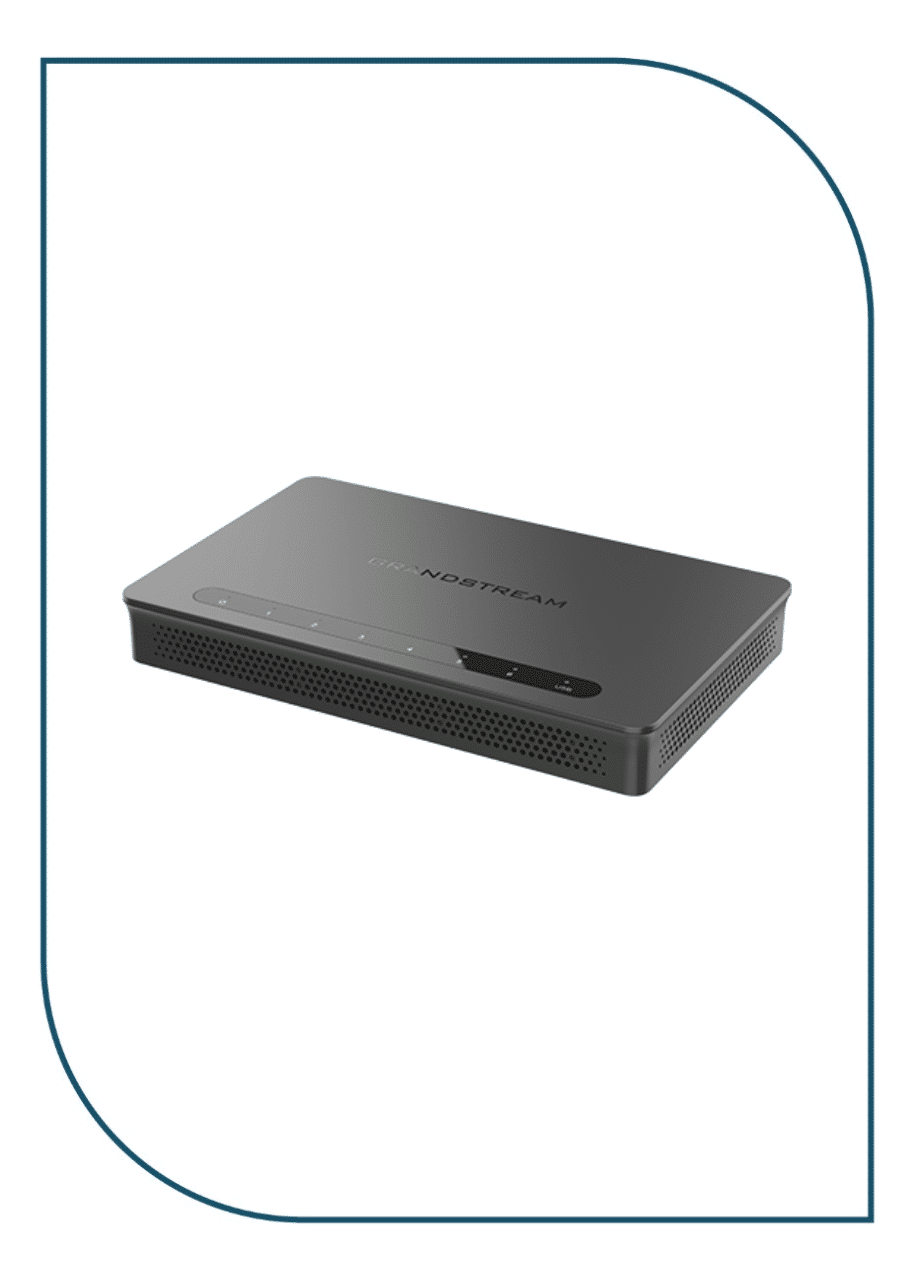

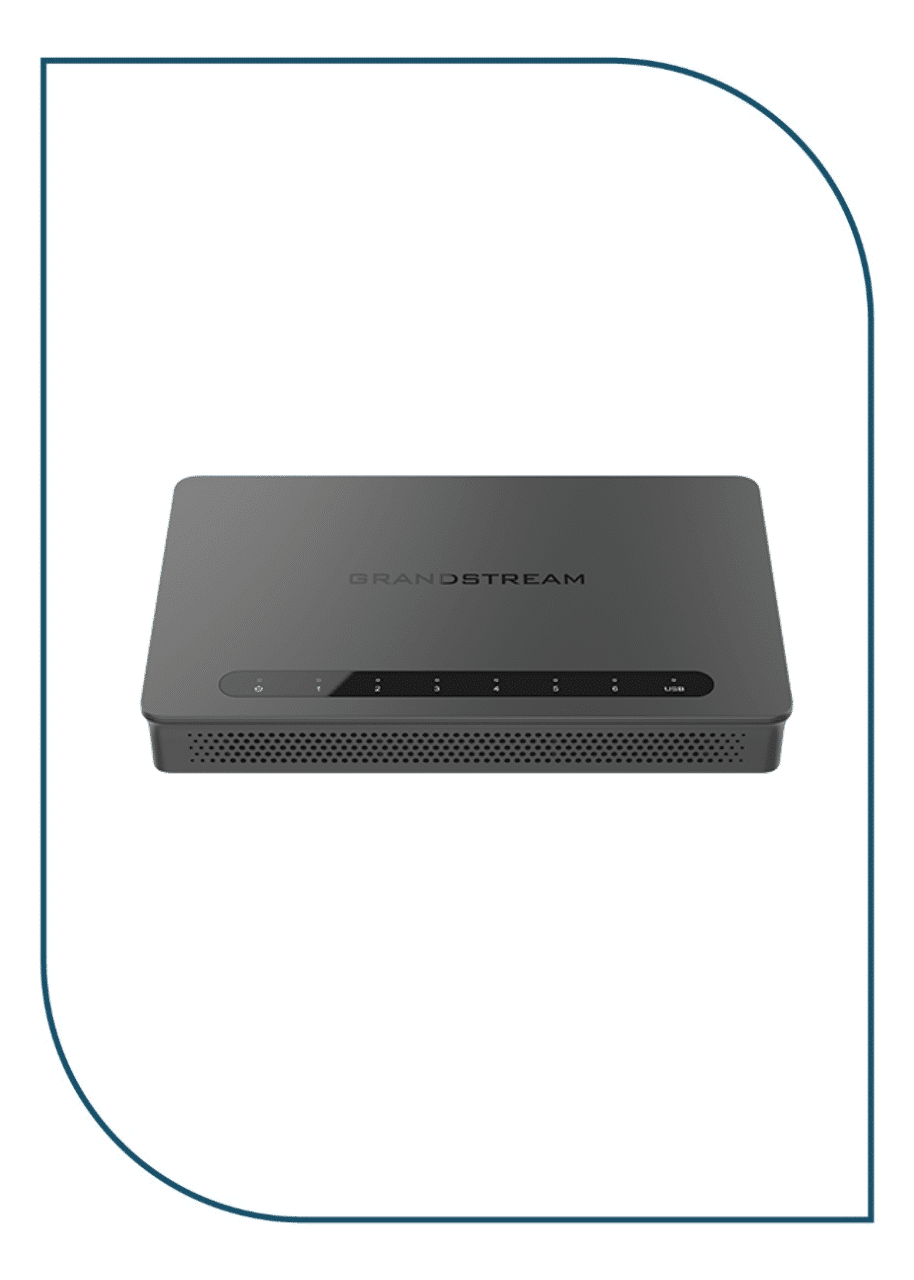

GrandStream Multi-WAN Gigabit VPN Routers (GWN7001)

The GWN7000 Series are Multi-WAN Gigabit VPN routers with built-in firewalls that allow businesses to build comprehensive wired, wireless and VPN networks for one or many locations. (GWN7001)

DATA SHEET

Ask for Price and stock

Availability: Available on backorder
SKU:GWN7001
Brand:

Description

GWN7001

Key features :

  • 1x GbE RJ45 port with IEEE 802.3af/at PoE Input and 2x GbE RJ45 ports with 48V Passive PoE output or IEEE802.3af (GWN7002/GWN7003)
  • Supports multiple Gigabit RJ45 ports
  • Supports 2x 2.5 Gigabit SFP ports (GWN7002/GWN7003)
  • Built-in VPN support allows easy access to corporate networks for remote employees
  • Multiple WAN ports with load balancing and failover to maximize connection reliability
  • Rich firewall features including DDNS, port forwarding, DMZ, UPnP, Anti-Dos, traffic rules, NAT and ALG
  • Supports application/protocol monitoring and traffic statistics with Deep Packet Inspection (DPI)
  • Advanced QoS to ensure real-time performance of low-latency applications
    Supports application, URL,DNS, and web content filtering to block access from unsecure contents
  • Embedded controller can manage itself and up to 150 GWN APs; GDMS Networking offers a free cloud management platform for unlimited routers and GWN APs
Category Specification
Memory & NAT Sessions 256MB RAM, 256MB Flash, 30K NAT sessions
NAT Routing & IPSec VPN Performance 2.2 Gbps NAT routing, 530 Mbps IPSec VPN
Wi-Fi Standards N/A
Network Interfaces 6x WAN/LAN Gigabit Ethernet ports
Network Protocols IPv4, IPv6, IEEE802.1Q, IEEE802.1p, IEEE802.1x, IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
PoE Output N/A
QoS VLAN, TOS, multiple traffic classes, filter by port/IP, DSCP, policing, App QoS, VoIP Prioritization
Firewall DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG, TURN Service
VPN SSL VPN Server / Client-to-Site, IPSec VPN Client-to-Site / Site-to-Site, PPTP VPN Server / Client-to-Site, L2TP Client-to-Site, WireGuard (pending)
IPSec Encryption DES, 3DES, AES
IPSec Authentication MD5, SHA-1, SHA2-256
IPSec Key Exchange Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14
IPSec Protocols ESP, IPSec NAT Traversal
SSL VPN Encryption AES, DES
SSL Authentication MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512
SSL VPN Certificate RSA
PPTP Encryption MPPE 40-bit, 128-bit, IPSec
PPTP / L2TP Authentication MS-CHAPv1/2
