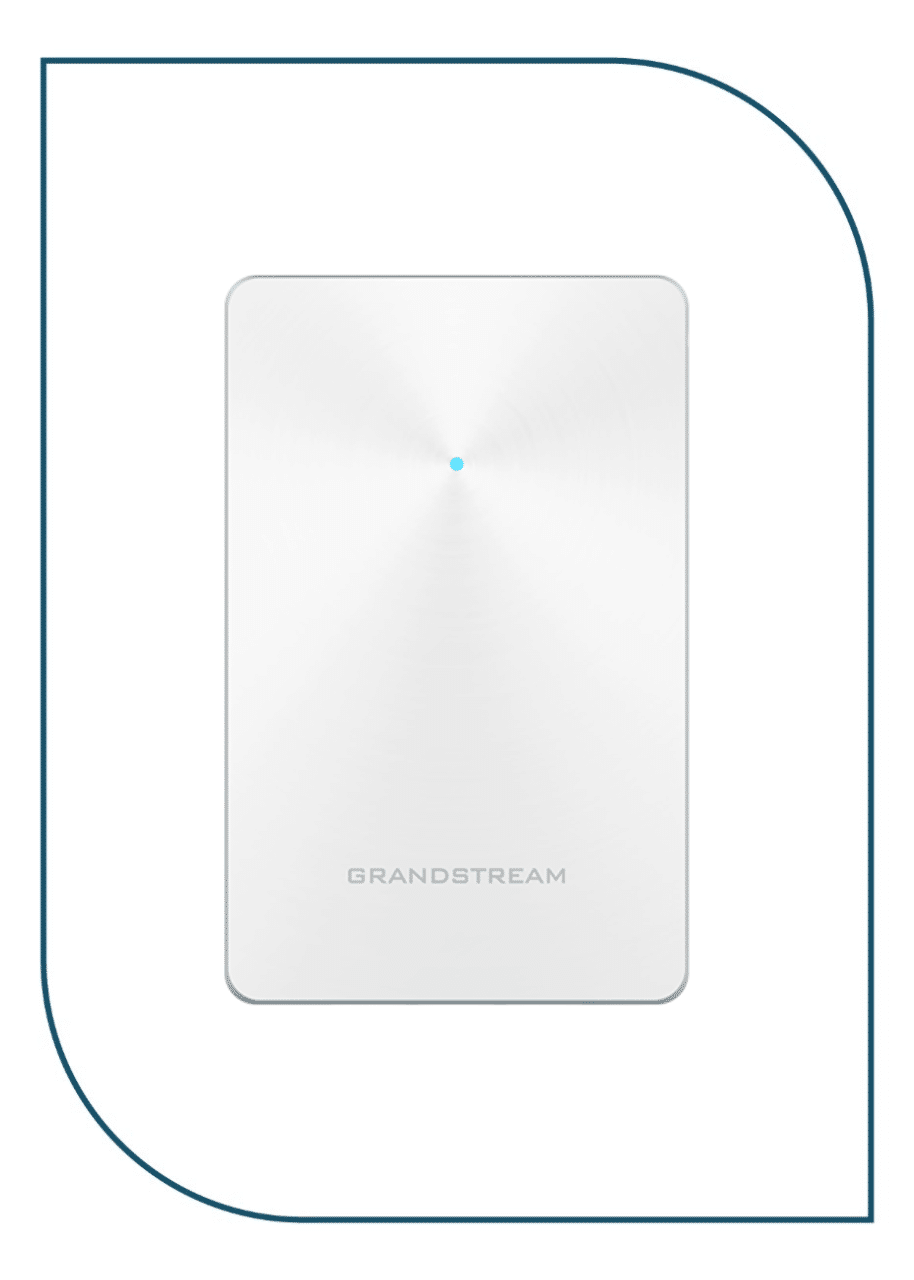

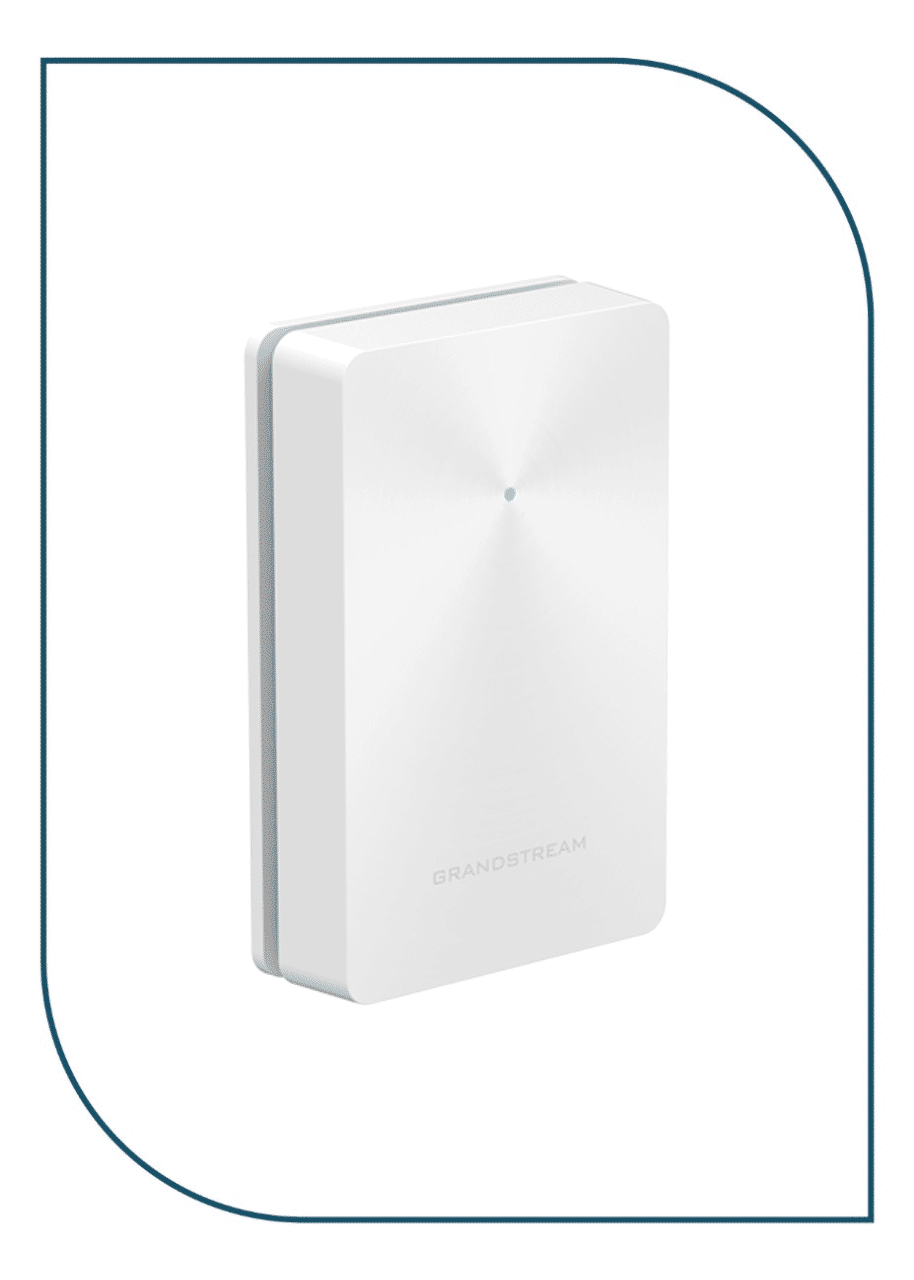

Grandstream GWN In-Wall Wi-Fi Access Point (GWN7624)

The GWN7624 is an in-wall Wi-Fi access point that includes three Gigabit network ports, 2 which provide PoE, to provide internet connections and power for devices such as IP phones, computers, TVs and more.

DATA SHEET

Ask for Price and stock

Availability: Available on backorder
SKU:GWN7624
Brand:

Description

GWN7624

key features :

  • 2.03 Gbps wireless throughput and 4 Gigabit wireline ports 5GHz 4×4:4 MU-MIMO
  • Supports up to 200 concurrent Wi-Fi client devices
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Self-power adaptation upon auto detection of PoE or PoE+
  • Embedded controller can manage up to 30 local GWN series APs;
  • GDMS Networking offers unlimited AP management; GWN Manager offers premise-based software controller

Specs :

Item Details
Client Devices 200+ devices
2.4GHz Throughput 300 Mbps (2×2:2 MIMO)
5GHz Throughput 1733 Mbps (4×4:4 MU-MIMO)
6GHz Throughput N/A
Range Up to 175 meters

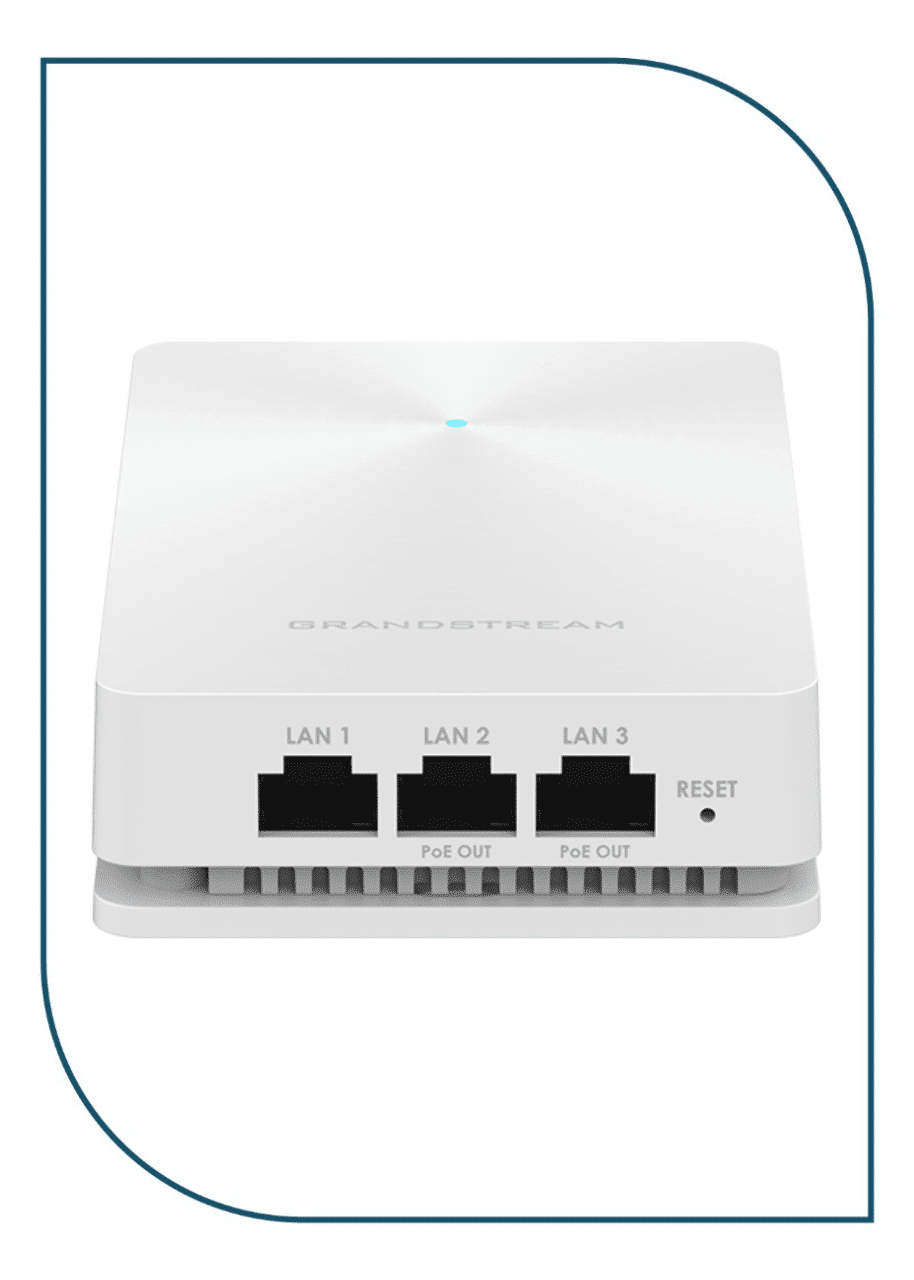

Network Interfaces 1 × 10/100/1000M uplink Ethernet port (PoE/PoE+)2 × 10/100/1000M Ethernet ports with PSE1 × 10/100/1000M Ethernet port
PoE Support IEEE 802.3az, PoE 802.3af / 802.3atPSE max output per port: 6W
Maximum Power Consumption 25W
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac
SSIDs 16 SSIDs total (8 per radio – 2.4GHz & 5GHz)
Antennas 2 × 5GHz + 2 × dual-frequency internal antennas
Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), WPA3, secure boot, digital signatures, unique security certificate, random default password
Dimensions 135 × 86 × 38.5 mm

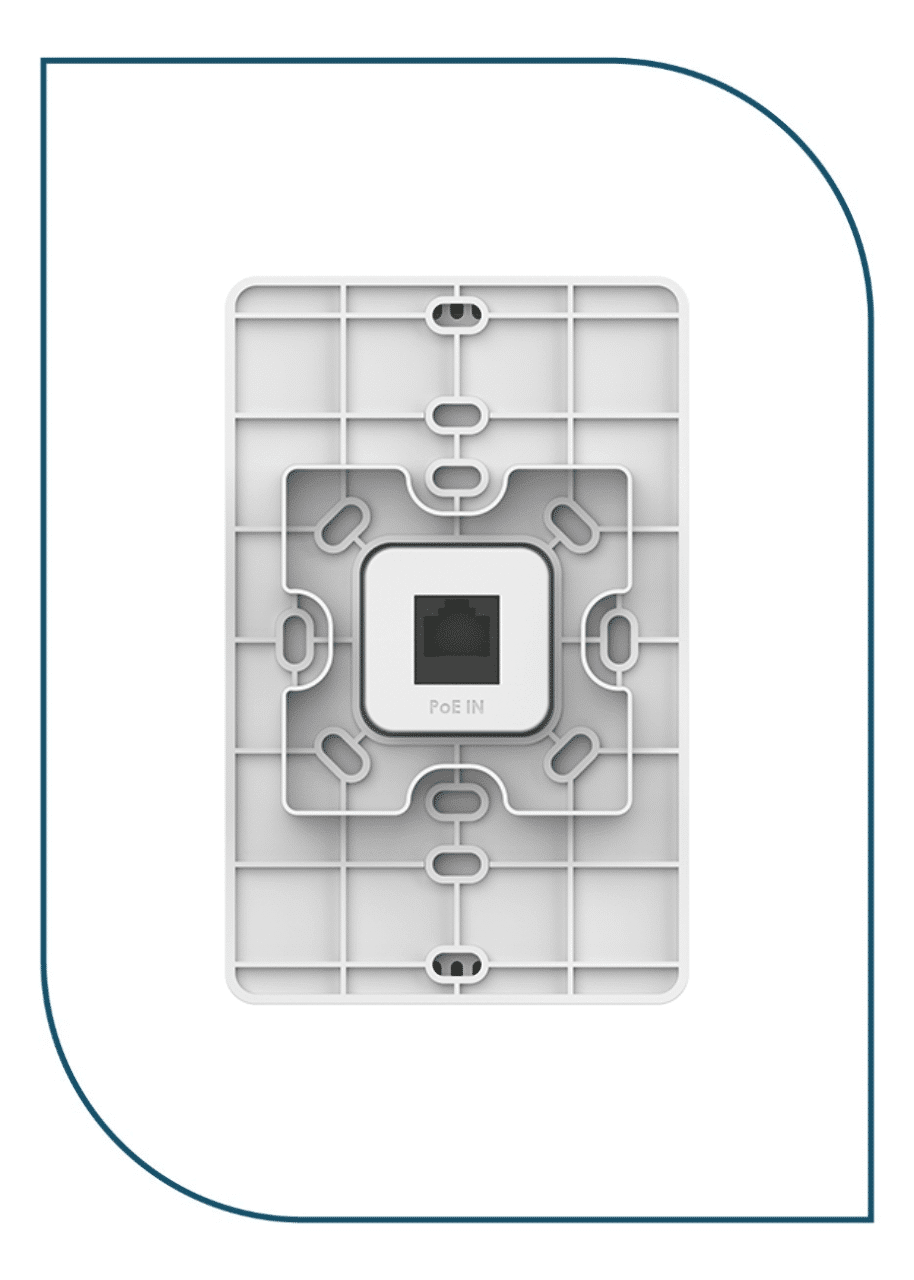

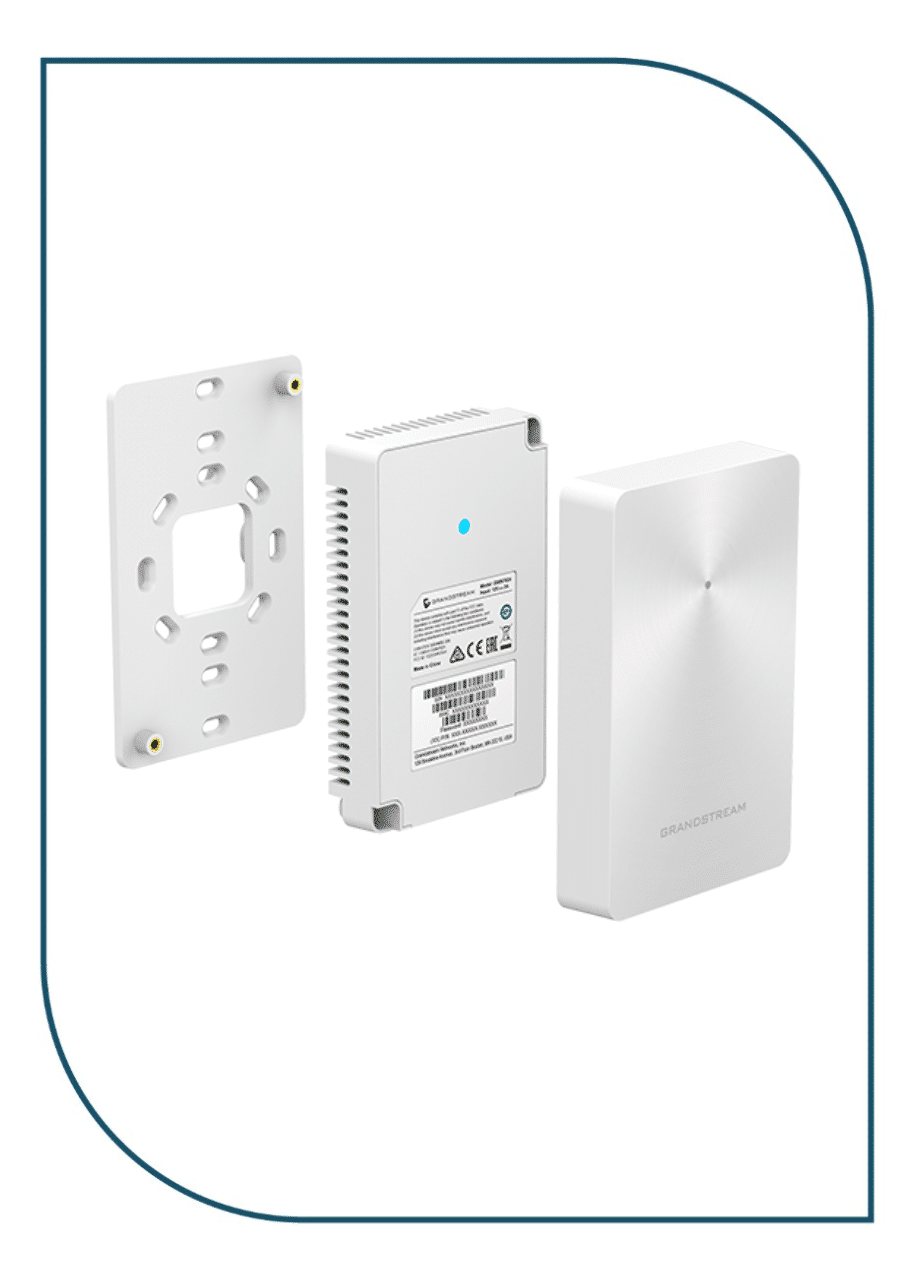

Mounting Options Wall mountable
