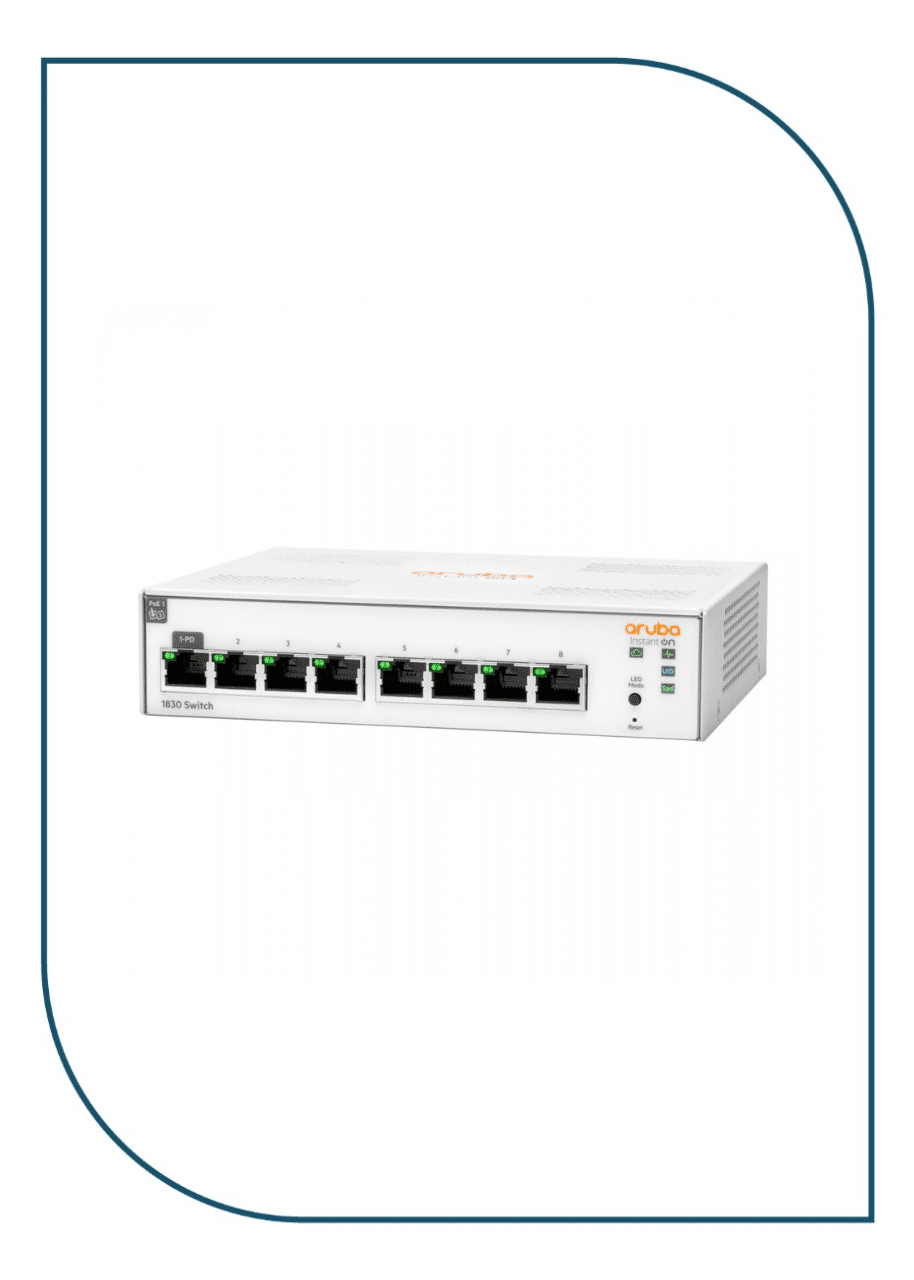

Aruba Instant On 1830 8G Switch (JL810A)
JL810A
ost-effective solution with evolving networking demands. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1830 switches
6.100,00 EGP
Buy NowDescription
JL810A
| Specification | Details |
|---|---|
| Product Type | Smart-Managed Gigabit Layer 2 Switch |
| Product Differentiator (Long) | Entry-level, smart-managed Gigabit Layer 2 switch designed for small businesses seeking a secure, affordable, and cost-effective networking solution. Easy to deploy and manage using the Aruba Instant On mobile app or cloud-based web portal, with optional local web GUI management. Built to support evolving networking demands. This model features 8 × 10/100/1000 RJ-45 ports and can be powered by an upstream Power over Ethernet (PoE) switch. |
| Management Features | Aruba Instant On Cloud, Web Browser (Local GUI), SNMP Manager |
| Ports | 8 × RJ-45 10/100/1000 Ethernet ports |
| PoE Capability | Not supported (PoE-powered via upstream switch) |
| Switching Capacity | 16 Gbps |
| Throughput | Up to 11.90 Mpps |
| Processor & Memory | ARM Cortex-A9 @ 800 MHz512 MB SDRAM256 MB Flash |
| Packet Buffer | 1.5 MB |
| Power Consumption | Maximum:100–127V: 8.09 W200–220V: 8.05 WIdle:100–127V: 5.8 W200–220V: 5.9 W |
| Input Voltage | 100–240 VAC |
| Warranty (Standard) | Limited Lifetime Warranty24×7 phone support for the first 90 daysChat support for the entire warranty duration |
| Additional Warranty Info | 3-year next-business-day product exchange with 9×5 phone support |
| Weight | 0.77 kg (1.70 lb) |
| Dimensions (H × W × D) | 15.70 × 17.30 × 3.91 cm(6.18 × 6.81 × 1.54 in) |
Additional information
| Access Ports | 8 |
|---|---|
| Access Ports Speed | 1 G (RJ-45) |
| Forwarding Rate (Throughput) | 11.90 Mpps |
| Management Platform | |
| Mounting Options | Rack Mount |
| POE | Not Support POE |
| Switch Layer | Layer 2 |
| Switching Capacity | 16 Gbps |
