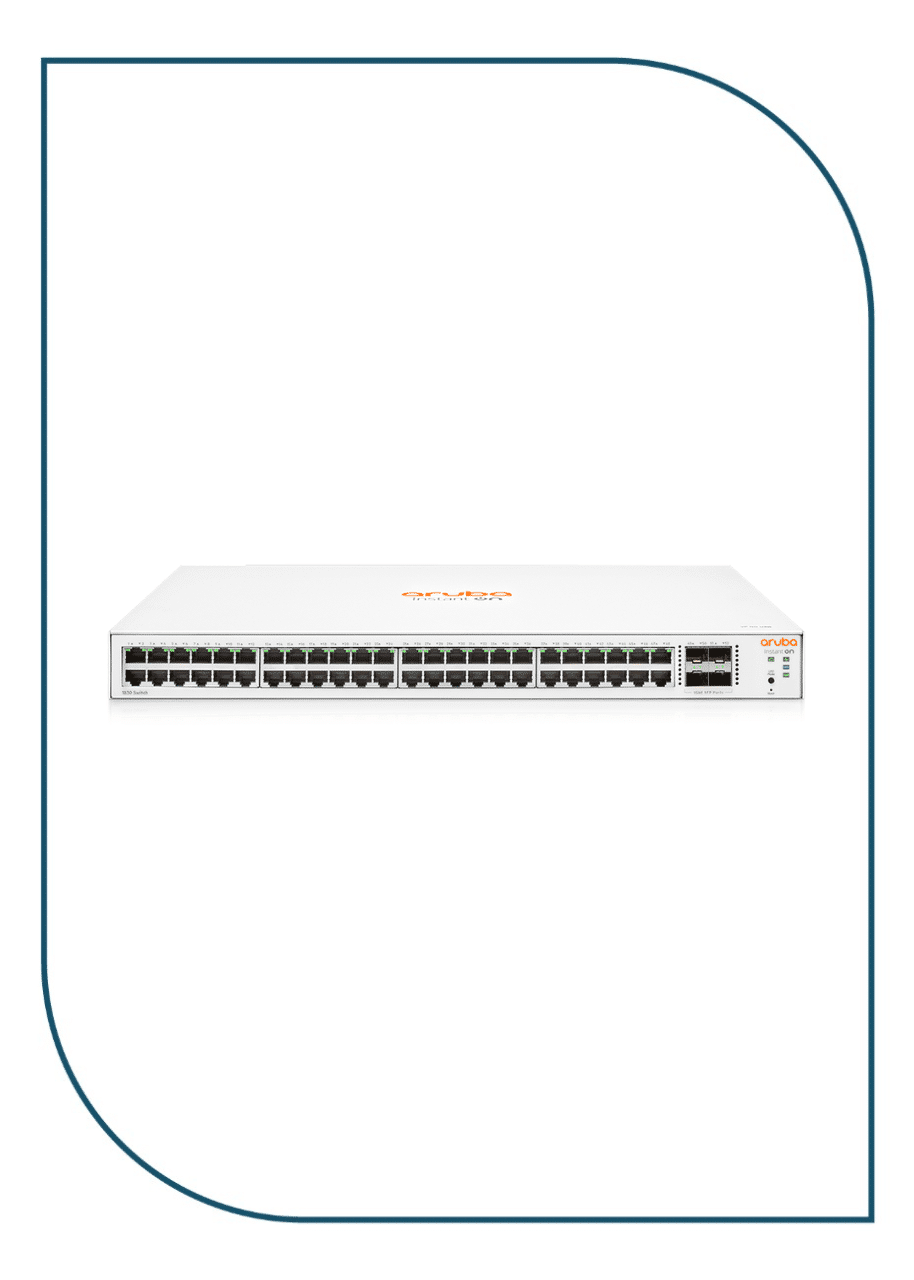

Aruba Instant On 1830 48G 4SFP Switch (JL814A)
JL814A
• 48 RJ-45 autosensing 10/100/1000 ports
4 SFP 1000 Mbps ports (min=0 max=4 SFP Transceivers)
1U – Height
17.500,00 EGP
Buy NowDescription
JL814A
| Specification | Details |
|---|---|
| Product Type | Smart-Managed Gigabit Layer 2 Switch |
| Product Differentiator (Long) | Entry-level, smart-managed Gigabit Layer 2 switch designed for small businesses seeking a secure, affordable, and cost-effective networking solution. Easy to deploy and manage using the Aruba Instant On mobile app or cloud-based web portal, with optional local web GUI management. Built to support evolving networking demands. This model features 48 × 10/100/1000 RJ-45 ports and 4 × SFP 1GbE uplink ports. |
| Management Features | Aruba Instant On Cloud, Web Browser (Local GUI), SNMP Manager |
| Ports | 48 × RJ-45 10/100/1000 Ethernet ports4 × SFP 1GbE ports |
| PoE Capability | Not supported |
| Switching Capacity | 104 Gbps |
| Throughput | Up to 77.37 Mpps |
| Processor & Memory | ARM Cortex-A9 @ 800 MHz512 MB SDRAM256 MB Flash |
| Packet Buffer | 1.5 MB |
| Power Consumption | Maximum:100–127V: 40.2 W200–220V: 40 WIdle:100–127V: 17.7 W200–220V: 17.7 W |
| Input Voltage | 100–240 VAC |
| Warranty | Limited Lifetime Warranty24×7 phone support for the first 90 daysChat support for the entire warranty duration |
| Weight | 3.54 kg (7.80 lb) |
| Dimensions (H × W × D) | 25.30 × 44.30 × 4.39 cm(9.96 × 17.44 × 1.73 in) |
Additional information
| Access Ports | 48 |
|---|---|
| Access Ports Speed | 1 G (RJ-45) |
| Forwarding Rate (Throughput) | 77.37 Mpps |
| Management Platform | |
| Mounting Options | Rack Mount |
| POE | Not Support POE |
| Switch Layer | Layer 2 |
| Switching Capacity | 104 Gbps |
| Uplink Ports | 4 |
| UpLinks Speed | 1G |
