Description

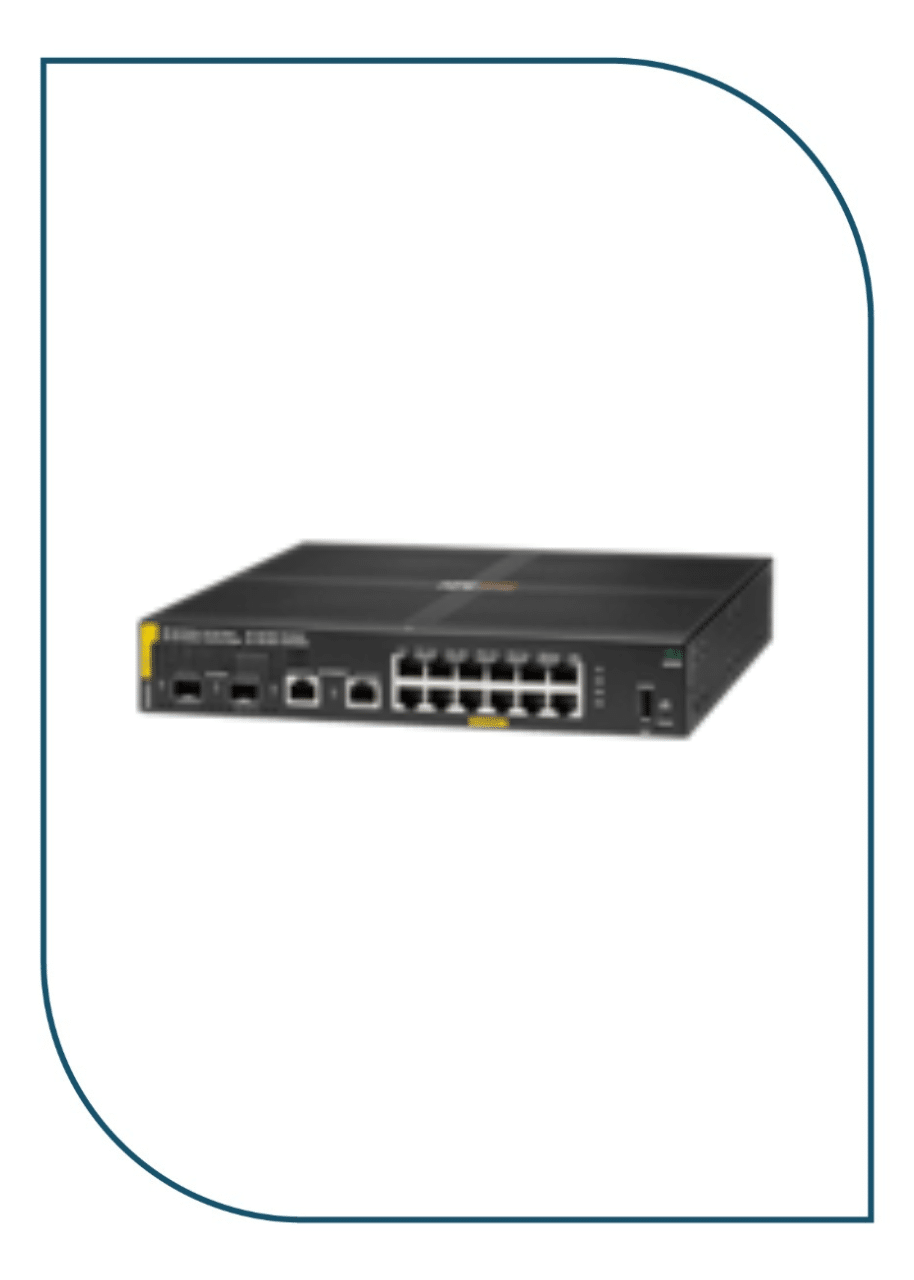

R8N89A
| Specification | Description |
|---|---|
| Power Consumption | Max Power (without PoE): 21.9W Max Power (with PoE): 170W |
| Input Voltage | 100-127 VAC / 200-240 VAC |
| External I/O Ports | 12x 10/100/1000BASE-T Ports 2x 1G SFP Ports 2x 1GbE Ports |
| Latency | 1 Gbps: 2.3 μSec |
| Routing Capabilities | Static |
| Switching Capacity | 32 Gbps |
| Throughput | 23.8 Mpps |
| Memory and Core | ARM Cortex A9 @ 1016 MHz 8 GB DDR3 (maximum, depending on model) 16 GB eMMC |
| PoE Capability | 139W Class 4 PoE/PoE+ |
| Warranty | Limited Lifetime Warranty |
| Weight | 6.13 lbs / 2.8 kg |
| Product Dimensions | 1.73 x 10.0 x 10.4 in / 4.4 x 25.4 x 25.5 cm |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) Up to 5000 ft (1.5 km) Derate -1°C for every 1000 ft (305 m) from 5000 ft to 10000 ft (1.5 km – 3 km) |
